9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

30 - FUEL AND AIR

Cold Weather Starting Aid

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T15712 O-Ring 1 X X
2 T13119 O-Ring 1 X X
3 RE48321 Adapter Fitting 1 X X
4 R73498 Container 1 X X
5 RE48310 Starting Aid Solenoid 1 X X
6 14M7298 Flange Nut 1 X X M8
7 19M7866 Screw 1 X X M8 X 20
8 RE33636 Starting Fluid 1 X X
9 RE21790 Elbow Fitting 2 X X
10 T32231 Clamp AR X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 ...... Fuel Line 1 X X (A) CTL 57 inch, MF H86108
R123993 Tube 1 X X (B)
12 19M7866 Screw 1 X X M8 X 20
13 14M7298 Flange Nut 1 X X M8
14 19M7866 Screw 1 X X M8 X 20
15 H137328 Lock Nut 1 X X M8

P-TRAP KIT (8.1 LITER ENGINES)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H217578 Fitting 1 X X
2 19M7866 Screw 1 X X M8 X 20
3 14M7298 Flange Nut 1 X X M8
4 R46414 Clamp 1 X X
5 ...... Isolator 1 X X CTL 150 mm, MF AH122244
6 AH220086 Fuel Line 1 X X

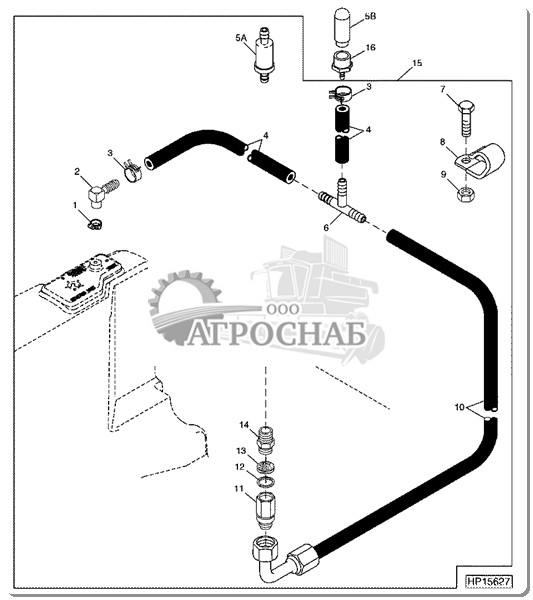

Fuel Return Lines and Fittings

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 15H625 Pipe Bushing 1 X X 1/4"
2 AH210784 Hose 1 - 715633
AH220797 Hose 1 715634 -
3 AR77962 Hose Clamp 3 X X
4 14M7298 Flange Nut 1 X X M8
5 R112945 Elbow Fitting 1 X X
6 H174634 Fitting 1 X X
7 19M7801 Screw 1 X X M8 X 60
8 R112945 Elbow Fitting 1 X X
9 AH202787 Hose 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 A49348 Threaded Nipple 1 X X
11 H218099 Check Valve 1 X X SUB FOR APPL H208211
12 H171634 Fitting 1 X X
13 ...... Hose 1 X X CTL 2700 mm, MF TY22553

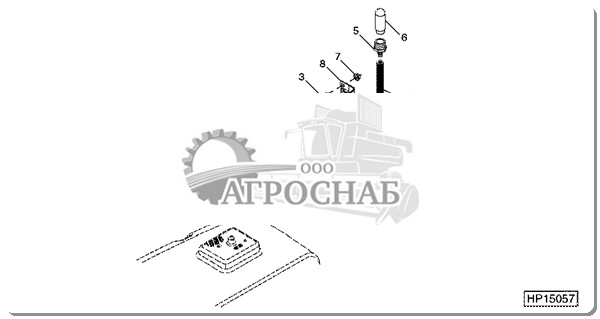

Fuel Tank Vent Breather Kit

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH215771 Breather 1 X X
2 R112945 Elbow Fitting 1 X X
3 15H638 Pipe Plug 1 X X 1/8"
4 ...... Hose 1 X X CTL 700 mm, MF TY22552
5 H216170 Fitting 1 X X
6 H216169 Breather 1 X X
7 14M7298 Flange Nut 1 X X M8
8 AH96317 Clip 1 X X
9 19M7866 Screw 1 X X M8 X 20

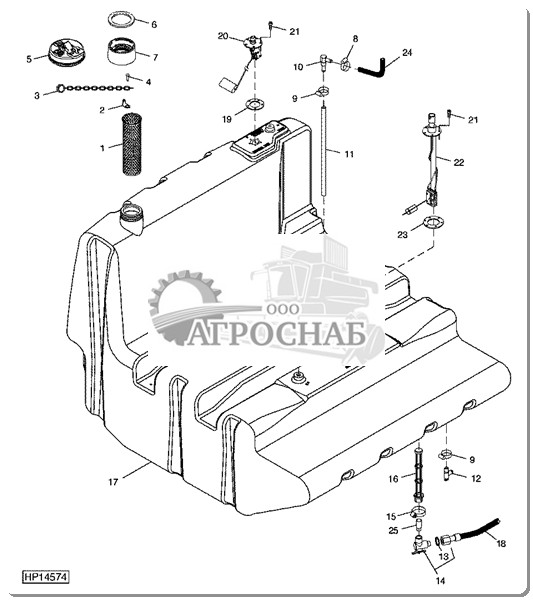

Fuel Tank And Fittings ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH173953 Strainer 1 X X
2 H174831 Anchor 1 X X
3 AH159448 Link Chain 1 X X
4 T164203 Screw 1 X X
5 RE255763 Cap 1 X X (SUB FOR AH165080 OR RE234193)
6 H172014 Gasket 1 X X
7 AH165079 Adapter Fitting 1 X X
8 AR77962 Hose Clamp 2 X X
9 AR44217 Clamp AR X X (A)
10 H205838 Elbow Fitting 1 X X (B) (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H214501 Fitting 1 X X (C)
11 H175894 Tube 1 X X (A)
12 AT35831 Drain Valve 1 X X (A)
13 T77857 O-Ring 1 X X
14 AH165932 Valve 1 X X (A)
15 AR21840 Hose Clamp 1 X X
16 AH165504 Fuel Filter 1 - 705927
AH165504 Fuel Filter 1 - 705753
17 AH168602 Fuel Tank 1 X X (A)
18 AH202271 Hose 1 - 705927
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH202271 Hose 1 - 705753
AH210805 Hose 1 705928 -
AH210805 Hose 1 705754 -
19 H168724 Gasket 1 X X
20 AH213241 Fuel Sender 1 X X (SUB FOR AH204775)
21 21M7265 Screw 11 X X M5 X 12
22 AH170876 Fuel Sender 1 X X
23 R95430 Gasket 1 X X
24 ...... Hose 1 - 705927
...... Hose 1 - 705753
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH210784 Hose 1 705928 - 715633
AH210784 Hose 1 705754 - 715633
AH220797 Hose 1 715634 -
25 H207624 Spacer 1 X X (A)
.. AH209076 Fuel Tank 1 X X (INCL A)

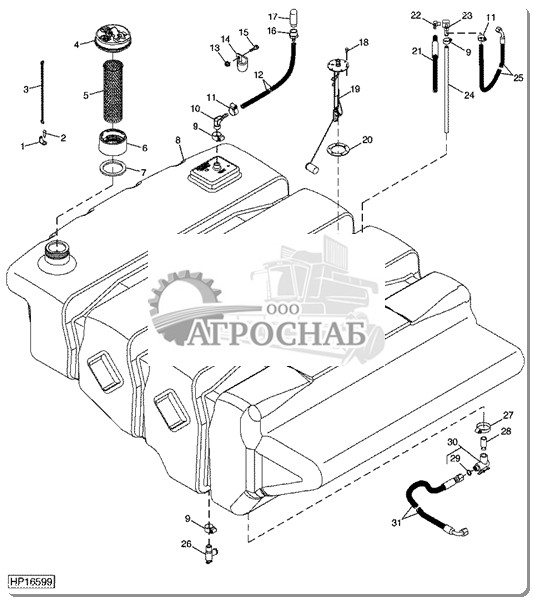

Fuel Tank And Fittings (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H174831 Anchor 1 X X
2 T164203 Screw 1 X X SUB FOR (2) AT18904
3 AH159448 Link Chain 1 X X
4 RE255763 Cap 1 X X SUB FOR RE234193
5 AH173953 Strainer 1 X X
6 AH165079 Adapter Fitting 1 X X
7 H172014 Gasket 1 X X
8 AH212815 Tank 1 X X
9 R191781 Hose Clamp 2 X X SUB FOR RE527586
10 R501664 Elbow Fitting 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AR48236 Clamp 2 X X
12 ...... Hose 1 X X CTL 700 mm, MF TY22552
13 14M7298 Flange Nut 1 X X M8
14 AH89486 Clip 1 X X
15 19M7866 Screw 1 X X M8 X 20
16 H216170 Fitting 1 X X
17 H216169 Breather 1 X X
18 21M7265 Screw 6 X X M5 X 12
19 AH170876 Fuel Sender 1 X X
20 R95430 Gasket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 AH225591 Hose 1 X X SUB FOR AH202867
22 R112945 Elbow Fitting 1 X X
23 H214501 Fitting 1 X X
24 H175894 Tube 1 X X
25 AH225593 Hose 1 X X SUB FOR AH212133
26 AT35831 Drain Valve 1 X X
27 AR44217 Clamp 1 X X
28 H207624 Spacer 1 X X
29 T77857 O-Ring 1 X X
30 AH165932 Valve 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 AH233425 Hose 1 X X SUB FOR AH213063

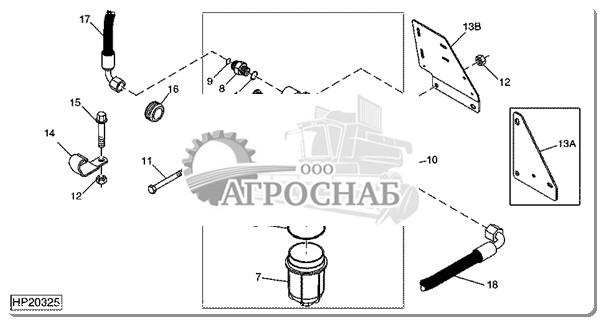

Fuel Prefilter And Hoses (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 51M7042 O-Ring AR X X 13.300 X 2.200 mm
2 RE52242 Drain Plug 2 X X
3 38H5135 Fitting 1 X X
4 T77857 O-Ring 1 X X
5 R502778 Filter Element 1 X X
6 R101042 O-Ring 1 X X
7 R502777 Bowl 1 X X
8 38H5037 Adapter Fitting 1 X X
9 T77613 O-Ring 1 X X
10 AH210803 Filter 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 19M7803 Screw 2 X X M8 X 70
12 14M7298 Flange Nut AR X X M8
13A H216345 Bracket 1 X X (SUB H235898)
13B H235898 Bracket 1 X X
14 AH89486 Clip 3 X X
15 19M7866 Screw 2 X X M8 X 20
16 U16949 Grommet 1 X X
17 AH213253 Hose 1 X X LGTH = 2480 mm
AH210804 Hose 1 X X (A) LGTH = 2060 mm
18 AH233425 Hose 1 X X LGTH = 1375 mm, (SUB FOR AH213063)

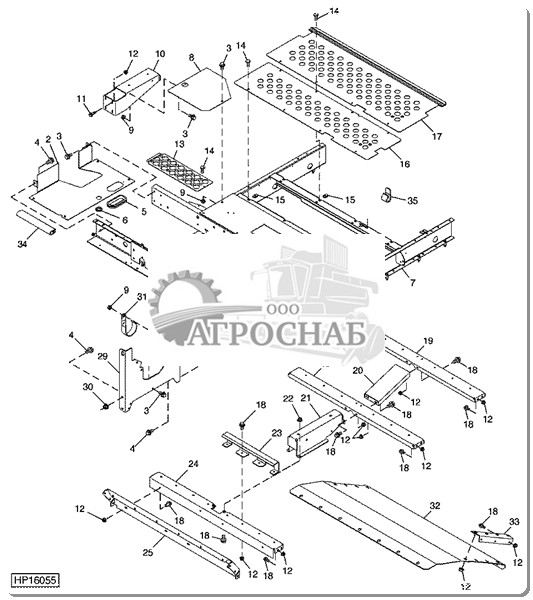

Engine Platform and Fuel Tank Supports ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H216152 Support 2 X X SUB FOR H212919
2 H170783 Deflector 1 X X
3 H117952 Clamp 1 X X
4 19M7784 Screw AR X X M10 X 20
5 14M7296 Flange Nut AR X X M10
6 H157681 Support 1 X X
7 19M7786 Screw 4 X X M10 X 30
8 H161095 Support 1 X X
9 AH169684 Support 1 X X RH; SUB H216152, H2161 53, 19M7786 AND 14M7296
H160987 Support 1 X X LH, (SUB H216152)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 24M7178 Washer AR X X 10.500 X 30 X 2.500 mm
11 19M7863 Screw AR X X M6 X 25 (SUB FOR (AR) 19M7866)
12A AH169685 Channel 1 X X (SUB AH215787, H216153, (4 ) 19M7786 AND (4) 14M7296)
12B AH215787 Channel 1 X X (SUB FOR AH212671)
13 H170785 Support 1 X X
14 14M7298 Flange Nut AR X X M8
15 AH164492 Angle 2 X X
16 H216651 Sheet 3 X X (B)
17 H169690 Grommet 1 X X
18 H136014 Mat 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 H136015 Mat 1 X X
20 H153761 Plate 1 X X
21 19M7789 Screw 4 X X M12 X 30
22 H156764 Door 1 X X
23A AH206000 Sheet 1 X X (A)
23B AH217076 Sheet 1 X X (B)
24 37M7083 Screw 8 X X M8 X 12
25 14M7299 Flange Nut 4 X X M12
26 21M7162 Screw 1 X X M10 X 20
27 19H1792 Cap Screw 4 X X 1/2" X 1"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 12H301 Lock Washer 4 X X 1/2"
29 M84972 Nut AR X X
30 21M7246 Screw AR X X M6 X 16
31 AH208984 Frame 1 X X
32 H175737 Sheet 1 X X
H216032 Panel 1 X X (C) (USE WITH H216029 AND H216031)
33 H175612 Panel 1 X X
H216029 Panel 1 X X (C) (USE WITH H216032, H2 16036, H216031 AND H216035)
34 H175379 Panel 1 X X
H216031 Panel 1 X X (C) (USE WITH H216032 AND H216029)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
35 H216153 Channel 2 X X SUB FOR H212920
36 19M7785 Screw AR X X M10 X 25
37 14M7303 Flange Nut 2 X X M6
38 H217476 Channel 1 X X
39 AH89557 Clip 1 X X
40 19M7863 Screw 1 X X M6 X 25 SUB FOR 19M7775
41 H158135 Nut 7

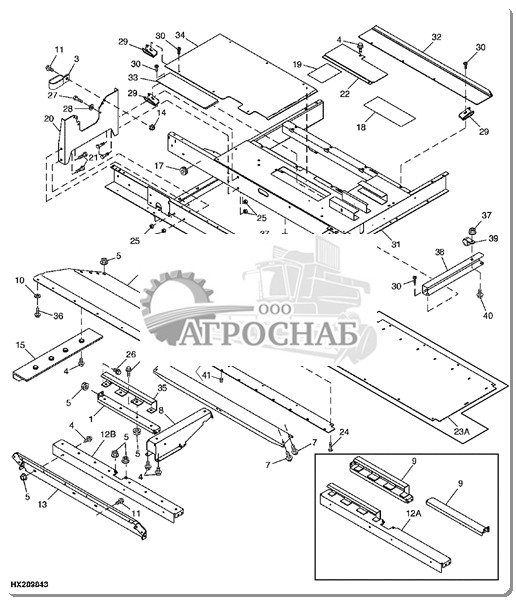

Engine Platform and Fuel Tank Supports (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 37M7083 Screw AR X X M8 X 12
2 H221381 Dust Shield 1 X X (SUB FOR H211979)
3 19M7863 Screw AR X X M6 X 25 (SUB FOR (AR) 19M7866)
4 19M7789 Screw AR X X M12 X 30
5 AH163320 Isolator 1 X X
6 H210728 Grommet 1 - 715633
A44292 Grommet 1 715634 -
7 AH210514 Frame 1 X X
8 H221669 Panel 1 X X (SUB FOR H216328)
9 14M7298 Flange Nut AR X X M8
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 H215876 Bracket 1 X X
11 19M7786 Screw 3 X X M10 X 30
12 14M7296 Flange Nut AR X X M10
13 H216029 Panel 1 X X
14 21M7246 Screw AR X X M6 X 16
15 M84972 Nut AR X X
16 H221148 Panel 1 X X (SUB FOR H210593)
17 AH213110 Instructions 1 X X
18 19M7784 Screw AR X X M10 X 20
19 H213532 Support 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 AH213756 Support 1 X X
21 H213533 Channel 1 X X
22 T68048 Weld Nut 2 X X
23 H216153 Channel 1 X X
24 AH215787 Channel 1 X X
25 H170785 Support 1 X X
26 AH170662 Isolator 1 X X
27 AH89486 Clip 3 X X
28 AH90990 Clip 3 X X
29 H222619 Plate 1 X X (SUB FOR H220301)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 14M7299 Flange Nut 2 X X M12
31 H218743 Clip 1 X X
32 H220246 Deflector 1 X X
33 AH164492 Angle 2 X X
34 H220798 Isolator 1 X X
35 AH130233 Clamp 4 X X

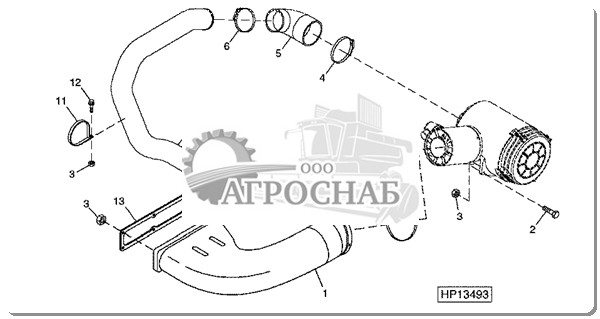

Air Cleaner And Hoses ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH173323 Air Duct 1 X X
2 19M7798 Screw 4 X X M8 X 40
3 14M7298 Flange Nut AR X X M8
4 RE66534 Clamp 1 X X
5 H157883 Hose 1 X X
6 AH166939 Clamp 2 X X
7 H208183 Tube 1 X X
8 R97097 Hose 1 X X
9 RE52703 Hose Clamp 1 X X
10 AH130230 Hose Clamp 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H208520 Clamp 1 X X
12 19M7868 Screw 1 X X M8 X 30
13 H178503 Gasket 1 X X

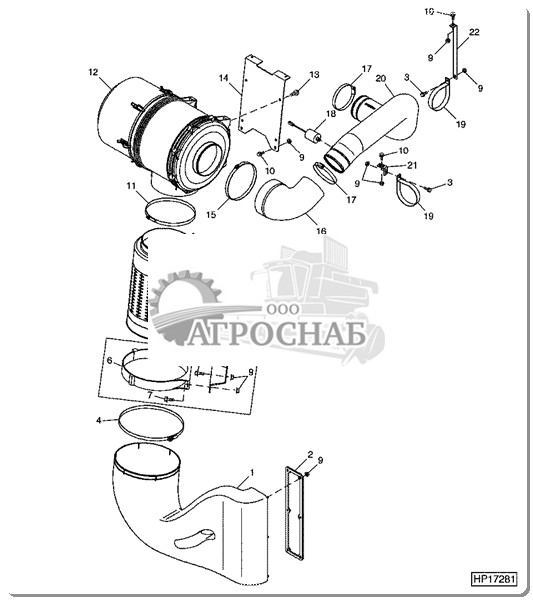

Air Cleaner And Hoses (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H221664 Air Duct 1 X X (SUB FOR H213522)
2 H213974 Gasket 1 X X
3 19M7897 Screw 2 X X M8 X 35
4 AH202081 Hose Clamp 1 X X
5 AH212924 Air Cleaner 1 X X
6 AH213030 Bracket 1 X X
7 19M7867 Screw 2 X X M8 X 25
8 H214074 Bracket 1 X X
9 14M7298 Flange Nut AR X X M8
10 19M7863 Screw AR X X M6 X 25 (SUB FOR (AR) 19M7866)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH217908 Hose Clamp 1 X X
12 AH213571 Air Filter 1 X X
13 19M7785 Screw 4 X X M10 X 25
14 H217419 Bracket 1 X X
15 AH217668 Clamp 1 X X
16 R128866 Suction Hose 1 X X
17 AH166939 Clamp 2 X X
18 AH148259 Switch 1 X X
19 H166385 Clamp 2 X X
20 AH229375 Tube 1 X X (SUB FOR AH213308)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH219301 Tube 1 X X (A)
21 H131526 Angle 1 X X
22 H223351 Angle 1 X X (SUB FOR H213824)
H219689 Angle 1 X X (A)

Air Cleaner ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH157554 Latch 1 X X
2 AH157555 Cover 1 X X
3 AH148880 Filter Element 1 X (A)
AH164062 Filter 1 X X (B)
4 RE63932 Filter Element 1 X (A)
AH164063 Filter 1 X X (B)
5 H164849 Elbow Fitting 1 X X
6 RE65440 Valve 1 X X
7 AR21842 Clamp 1 X X
8 AH152098 Air Cleaner 1 X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH163980 Air Cleaner 1 X X (B)
9 RE66534 Clamp 1 X X
10 AH148259 Switch 1 X X (C)
11 AH130230 Hose Clamp 1 X X
12 19M8318 Screw 4 X X M8 X 45
13 14M7298 Flange Nut 4 X X M8
14 AH89557 Clip 1 X X

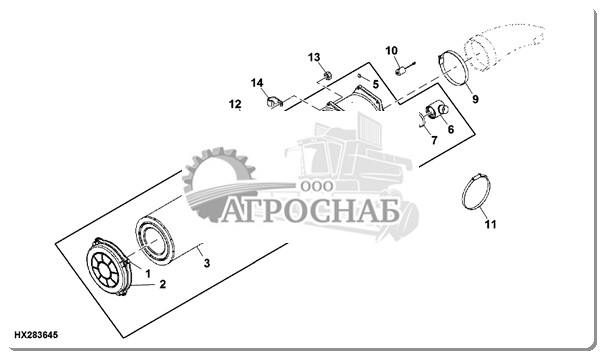

Air Cleaner (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH213571 Air Filter 1 X X
2 AH217911 Cover 1 X X
3 AH212294 Filter Element 1 X X
4 AH212295 Filter Element 1 X X
5 AH217912 Latch 6 X X

Air Cleaner Brackets and Supports ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH90990 Clip 1 X X
2 19M7863 Screw AR X X M6 X 25
3 19M7867 Screw AR X X M8 X 25
4 AH213761 Channel 1 X X (SUB FOR AH170383)
5 14M7298 Flange Nut AR X X M8
6 H176002 Bracket 1 X X
7 AH169056 Bracket 1 X X
8 H175941 Angle 1 X X
9 H164089 Angle 1 X X
10 AH212388 Channel 1 - 710500
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH212388 Channel 1 - 710600
AH216310 Channel 1 710501 -
AH216310 Channel 1 710601 -
11 AH159487 Support 1 - 705927
AH159487 Support 1 - 705753
AH201091 Bracket 1 705928 -
AH201091 Bracket 1 705754 -
12 AH89557 Clip 1 X X
13 AH202512 Handle 1 X X
14 AH216133 Channel 1 X X (SUB FOR AH209930)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
15 AH159488 Support 1 - 705927
AH159488 Support 1 - 705753
AH212413 Support 1 705928 -
AH212413 Support 1 705754 -
16 H165547 Plug 1 X X
17 AH202388 Cover 1 X X
18 19M7785 Screw AR X X M10 X 25
19 H143731 Push Nut 2 X
20 14M7299 Flange Nut 6 X X M12
21 AH215727 Deflector 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
22 M84309 Nut 3 X X

Air Cleaner Brackets and Supports (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH214042 Channel 1 X X
2 19M7863 Screw AR X X M6 X 25 (SUB FOR (AR) 19M7866)
3 M84309 Nut AR X X
4 AH225293 Support 2 X X (SUB FOR (2) AH219630)
5 AH219285 Channel 1 X X
6 14M7298 Flange Nut AR X X M8
7 M84971 Nut AR X X
8 H217171 Deflector 1 X X
9 AH220953 Heat Shield 1 X X (SUB FOR AH219741)
10 H209899 Bracket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H213294 Cover 1 X X (SUB FOR AH215908)
12 H217423 Bracket 2 X X
13 H158135 Nut AR X X
14 H213789 Channel 1 X X
15 AH220924 Channel 1 X X (SUB FOR AH219286)
16 H222682 Channel 1
17 H227338 Channel 1 X X (SUB FOR H220257) (SUB FOR H221606)
18 H226284 Step 1 X X (SUB FOR H216806) (SUB FOR H220692)
19 H214874 Gusset 1 X X
20 19M7979 Screw 1 X X M8 X 55
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 H140460 Bushing 1 X X
22 AH216586 Tube 1 X X
23 AH220960 Post 2 X X (SUB FOR AH219643)
24 H220735 Cover 1 X X
25 24M7207 Washer 2 X X 8.400 X 24 X 2 mm
26 H131531 Push Nut 3 X X
27 H221717 Bracket 1 X X
28 AH77869 Clip 1 X X
29 H131526 Angle 1 X X

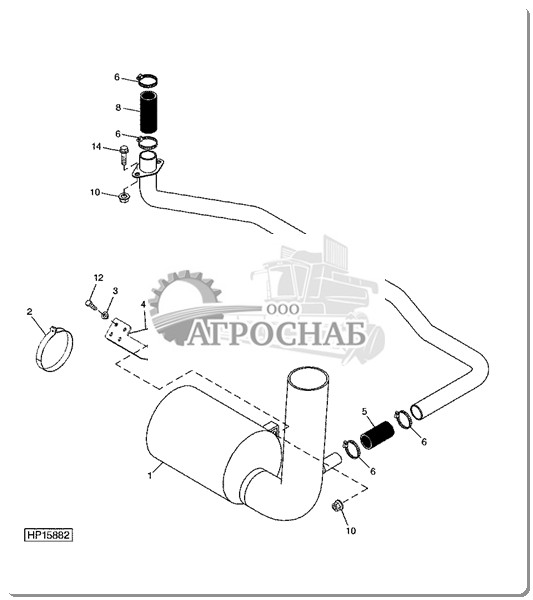

Muffler and Ejector ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH207389 Muffler 1 - 705927
AH207389 Muffler 1 - 705753
AH209780 Muffler 1 705928 -
AH209780 Muffler 1 705754 -
2 RE40048 Clamp 1 X X
3 24M7178 Washer 4 X X 10.500 X 30 X 2.500 mm
4 H207597 Bracket 1 X X
5 H168343 Hose 1 X X
6 TY22470 Clamp 4 X X
7 AH202554 Tube 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
8 H210155 Hose 1 X X
9 03M7216 Bolt 1 X X M8 X 50
10 14M7298 Flange Nut AR X X M8
11 AH204592 Exhaust Cap 1 X X
12 19H3693 Screw 4 X X 3/8" X 1-1/4"
13 19M7866 Screw 2 X X M8 X 20
14 19M7865 Screw 2 X X M8 X 16

Muffler and Ejector (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH221758 Muffler 1 X X (SUB FOR AH217785)
AH221418 Muffler 1 X X (A)
2 14M7298 Flange Nut AR X X M8 (SUB FOR H219872) (USE WITH H223293)
M84309 Nut 2 X X (USE WITH H226569)
3 H226935 Bracket 1 X X (A) (SUB FOR H219729)
3A H223293 Bracket 1 X X (SUB H226569)
3B H226569 Bracket 1 X X
4 19M7863 Screw AR X X M6 X 25
5 03M7184 Bolt 2 X X M8 X 20 (USE WITH H223293)
19M7866 Screw 2 X X M8 X 20 (USE WITH H226569)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
6 H221804 Tube 1 X X (SUB FOR H218972)
7 RE40048 Clamp 1 X X
8 AR21840 Hose Clamp 2 X X
9 H218884 Hose 1 X X
10 N198631 Clamp 1 X X
AH117301 Clamp 1 X X (A)
11 AH208089 Check Valve 1 X X
12 T164030 Clamp 1 X X
13 19M7897 Screw 1 X X M8 X 35
14 AR21999 Hose Clamp 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
15 AH216996 Hose 1 X X
16 AH204592 Exhaust Cap 1 X X
17 03M7216 Bolt 1 X X M8 X 50
18 14M7396 Lock Nut 1 X X M8

Fuel Tank Vent ( - 710500)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AR44217 Clamp 1 X X
2 R65737 Filter 1 X X
3 R56101 Clip 1 X X
4 ...... Hose 2 X X CTL 500 mm, MF TY22551
5A AM107314 Fuel Filter 1 X X SUB FOR APPL H216169
5B H216169 Breather 1 X X ALSO ORDER H217849
6 N154080 Tee Fitting 1 X X
7 19M7866 Screw 3 X X M8 X 20
8 AH89557 Clip 3 X X
9 14M7298 Flange Nut 1 X X M8
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 AH165251 Hose 1 X X
11 R65736 Fitting 1 X X
12 R10172 Washer 1 X X
13 R65737 Filter 1 X X
14 RE502650 Fitting 1 X X
15 AH201482 Vent Kit 1 X X (A)
16 H217849 Fitting 1 X X

Fuel Tank Vent (710501 - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AR44217 Clamp 1 X X
2 R112945 Elbow Fitting 1 X X
3 R56101 Clip 2 X X
4 ...... Hose 1 X X CTL 700 mm, MF TY22552
5 H216170 Fitting 1 X X
6 H216169 Breather 1 X X
7 14M7298 Flange Nut AR X X M8
8 AH96317 Clip AR X X
9 19M7865 Screw AR X X M8 X 16

Fuel Tank Vent (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 R191781 Hose Clamp 1 X X (SUB FOR AT18904 OR RE527586)
2 R501664 Elbow Fitting 1 X X
3 19M7866 Screw 2 X X M8 X 20
4 ...... Hose 1 X X CTL 700 mm, MF TY22552
5 H216170 Fitting 1 X X
6 H216169 Breather 1 X X
7 14M7298 Flange Nut 4 X X M8
8 AH89486 Clip 2 X X

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?
